Key Takeaways
- The HAVN BF 360 Flow redefines premium mid-tower thermals, driven by its unique 40mm thick, 180mm H18 intake fans and the internal GPU Air Guide Ramp, specifically optimized for high-end graphics cards.
- The included 140mm H14 exhaust fan complements the H18s with 85.18 CFM and 2.19 mmH2O static pressure, utilizing advanced Triple-Groove Fluid Dynamic Bearings for silent, long-lasting operation.
- Our noise-normalized testing confirms the HAVN case achieves best-in-class GPU cooling performance, but its premium price point faces stiff competition from value leaders like the Lian Li Lancool 217.
- A critical ‘gotcha’ for the aesthetic-conscious: the ‘White’ variant features contrasting black internal components, leading to a visual disconnect that undermines its premium price point.
- The core technical benefit of the 180mm fan design is its ability to move a massive 164.63 CFM of air at significantly lower, quieter RPMs, providing superior cooling without the acoustic penalty.
- Maintaining a slight positive air pressure (Intake CFM > Exhaust CFM) is crucial for component longevity, maximizing cooling efficiency, and preventing dust ingress through unfiltered gaps.
The 180mm Fan Revolution: Engineering the HAVN BF 360 Flow

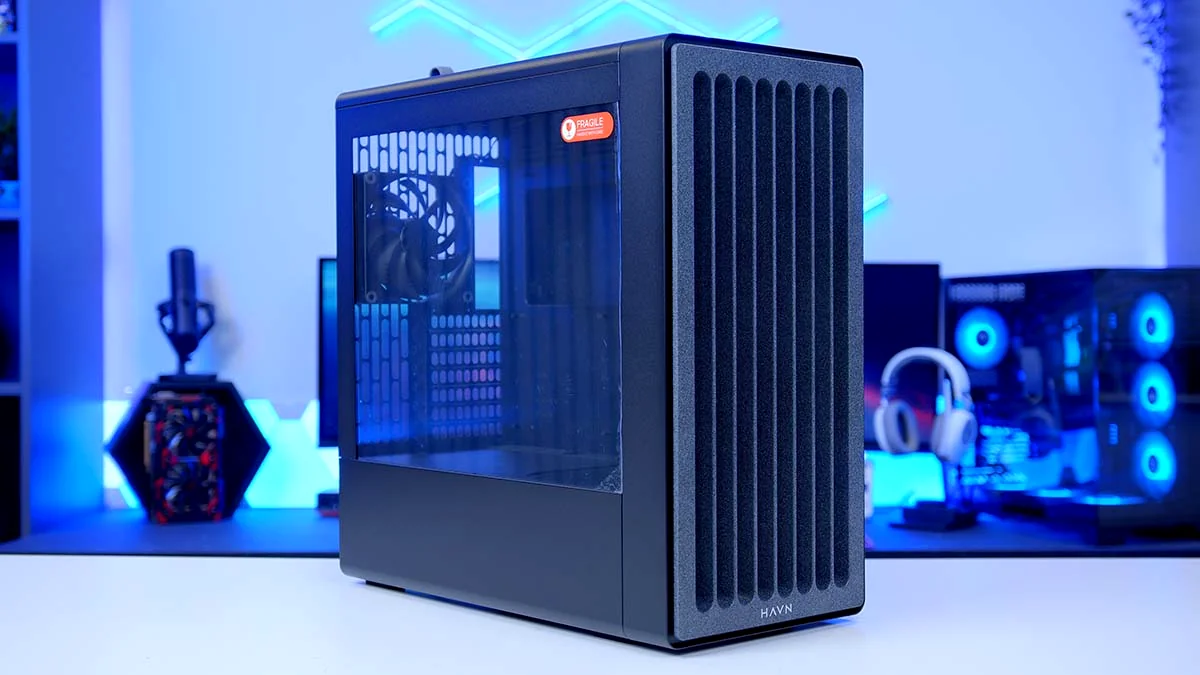

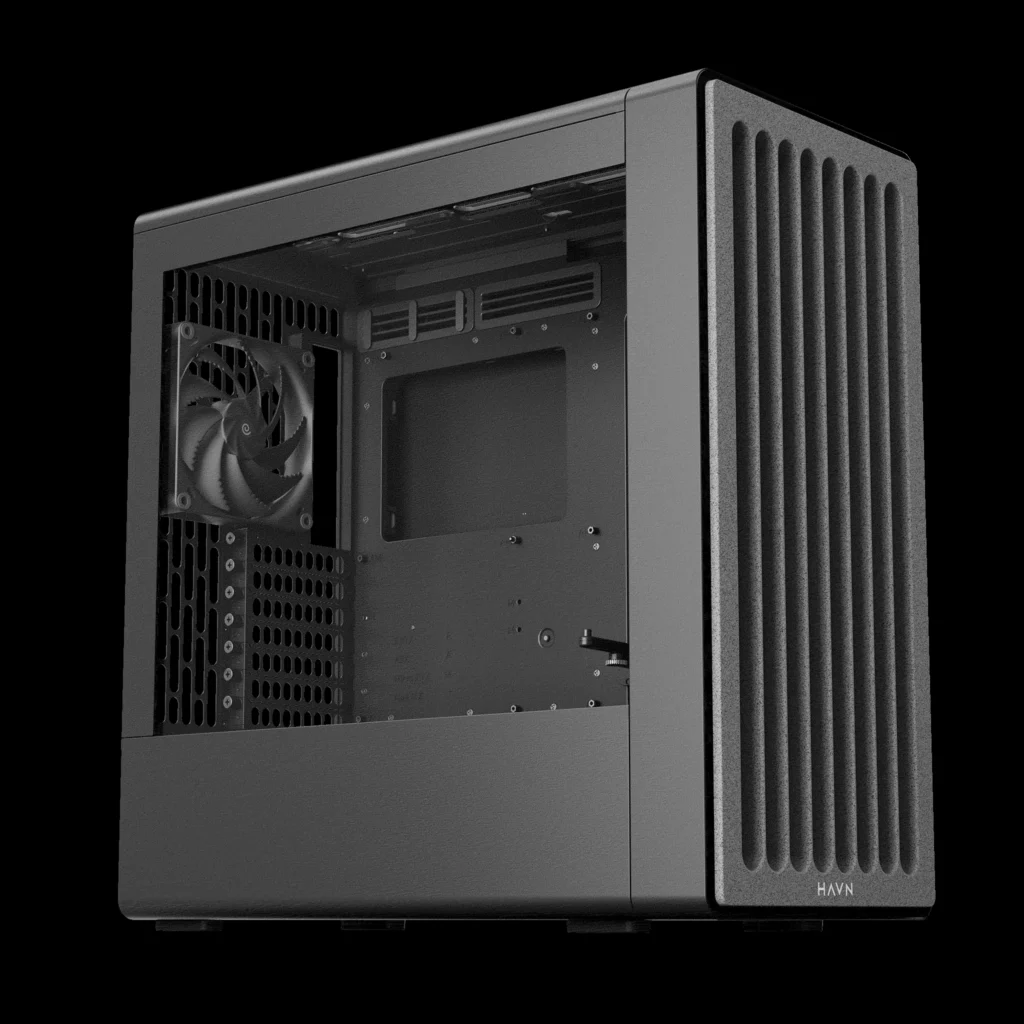

The HAVN BF 360 Flow made a significant impact at Computex 2025, securing the coveted ‘Best of Show’ award. Its aesthetic is a masterclass in professional minimalism, featuring a durable SGCC steel structure and a sleek, stone-textured front panel. However, the true innovation lies beneath the surface: the massive 40mm thick H18 intake fans and the equally robust 30mm thick H14 exhaust fan. Standard case fans are typically 25mm thick; by increasing this depth to 30mm (H14) and 40mm (H18), HAVN allows for a much more aggressive blade design capable of generating superior static pressure and moving a colossal volume of air (164.63 CFM per H18 fan, 85.18 CFM for the H14). Both the H18 and H14 fans are built with Triple-Groove Fluid Dynamic Bearings (FDB), ensuring exceptional longevity and near-silent operation by balancing shaft pressure and enhancing oil retention. The H14 fan blades are further reinforced with 30% glass fiber PBT for superior rigidity and acoustic stability. This engineering choice is critical: it means the fans achieve peak cooling performance while operating at significantly lower RPMs, translating directly into a whisper-quiet acoustic profile under heavy load—the defining feature of this premium chassis. HAVN thoughtfully includes ‘Radiator-Ready extended screws’ to facilitate installation of these thicker fans with dense radiator stacks.
HAVN BF 360 Flow Core Specifications
| Form Factor | ATX Mid-Tower (E-ATX up to 277mm width) |
| Dimensions (LxWxH) | 515 x 254 x 522.6 mm |
| Case Weight | 14.79 kg (32.6 lbs) |
| Included Fans | 2x 180mm H18 Intake, 1x 140mm H14 Exhaust |
| H18 Fan Specs | 180x180x40mm, FDB, 0-1300 RPM, 164.63 CFM, 2.19 mmH2O, MTTF >150,000h |
| H14 Fan Specs | 140x140x30mm, FDB, 0-1600 RPM, 85.18 CFM, 2.19 mmH2O, Noise 30.8 dBA, MTTF >150,000h |
| Storage Support | Up to 2x 2.5-inch SSDs, Up to 1x 3.5-inch HDD (expandable to 10x 2.5-inch or 5x 3.5-inch with additional trays) |
| Max GPU Length | 410 mm (with adjustable support bracket) |
| Max CPU Cooler Height | 195 mm |
| Max Radiator Support (Top) | 360mm |
| Key Feature | GPU-Focused Air Guide Ramp, SimpliCable Routing, Loopin™ System, Stone-textured front panel |
HAVN H14 Exhaust Fan: The Harmonized Flow Advantage
While the dual H18s capture the spotlight, the pre-installed 140mm HAVN H14 exhaust fan is a critical component of the BF 360 Flow’s thermal strategy. Engineered with a ‘Harmonized Flow Hub,’ the H14 boosts static pressure and cooling efficiency, complementing the intake fans perfectly. Its ‘Harmonized Blade Edges’ feature a wavy design that smooths airflow and actively minimizes turbulence and noise. Like its larger H18 siblings, the H14 boasts Triple Groove Fluid Dynamic Bearings with self-lubricating channels, ensuring a long lifespan (MTTF > 150,000h) and whisper-quiet operation at only 30.8 dBA. The fan’s frame and blades are crafted from 30% glass fiber reinforced PBT, providing exceptional rigidity and acoustic stability. Furthermore, the H14 integrates HAVN’s ‘Loopin System’ with passthrough connectors, enabling seamless daisy-chaining to minimize cable clutter and conserve fan headers—a thoughtful detail for a clean build.
Thermal Benchmarks: Premium Performance vs. The Value Leaders
When assessing premium cooling solutions, raw thermal performance metrics often mislead. The critical metric for enthusiast builders is noise-normalized performance—how cool the components run when the fan noise is capped at a consistent, quiet decibel level. The data clearly shows the tension in the market: Lian Li’s Lancool 217 delivers what the community calls ‘insane value,’ offering thermal results that are competitively close to the top tier at a significantly lower price point. However, the HAVN BF 360 Flow’s advantage is realized entirely in its acoustic profile. Because the massive H18 intake fans and the efficient H14 exhaust fan move air so effectively at low RPMs, the HAVN maintains its exceptional thermal ceiling while operating in a virtually inaudible state. For those who demand silence alongside peak cooling, this efficiency is worth the premium.
Noise-Normalized Thermal Performance Comparison (Delta T)
| Model | MSRP (Flow Edition) | CPU Temp (Delta T) | GPU Temp (Delta T) | Fan Configuration | Unique Feature |
|---|---|---|---|---|---|
| HAVN BF 360 Flow | ~£170 / $190 | 41°C | 43°C (Best in Class) | 2x 180mm Intake, 1x 140mm Exhaust | GPU Air Guide Ramp |
| Lian Li Lancool 217 | ~$120 / £100 | 42°C | 44°C | 2x 170mm Intake, 1x 140mm Exhaust, 2x 120mm Reverse | Back-Connector Motherboard Support |
| Corsair Frame 4000D RS ARGB | ~$100 / £95 | 43°C | 45°C | 3x 120mm/140mm Intake, 1x 120mm Exhaust | Infin Rail System, Removable Tray |
Pros
- Exceptional noise-normalized thermal performance, particularly for the GPU, thanks to the Air Guide Ramp and high-CFM H18/H14 fans.
- Industry-leading 30mm & 40mm thick fans (H14/H18) with Fluid Dynamic Bearings provide massive, quiet airflow and superior longevity.
- High-quality construction using SGCC steel, PBT + 30% Glass Fiber for fans, and comprehensive anti-vibration damping.
- Excellent cable management features (Loopin System, velcro straps, rubber grommets) and generous component clearance (410mm GPU, 195mm CPU cooler, 277mm E-ATX).
Cons
- Premium price point significantly higher than strong competitors in the high-airflow segment.
- Chassis is exceptionally heavy at 14.79 kg, making frequent relocation or iterative builds impractical.
- The ‘White’ variant features disappointing black internal components, clashing with the exterior and failing to deliver a true all-white aesthetic.
- Limited warranty (1 year) and potential geographical shipping restrictions.
The Builder’s Guide: Achieving Perfect Positive Pressure & Practical Build Considerations
In the pursuit of maximizing component longevity, thermal performance is only half the battle. We must also address the physics of internal air pressure. A negative pressure environment—where exhaust CFM exceeds intake CFM—draws air and, crucially, fine dust particles into the system through every tiny, unfiltered gap around panels, I/O ports, and seams. This is a maintenance nightmare that rapidly degrades cooling efficiency as dust cakes radiator fins. Conversely, positive pressure forces air *out* of those gaps, meaning all incoming air is routed through your filtered intake zones. This strategy is the single most effective way to maintain internal cleanliness, drastically reducing the frequency of maintenance and ensuring your cooling solution performs optimally for years. Beyond airflow, the BF 360 Flow excels in practical build features. It offers extensive cable management, featuring designated channels with velcro straps behind the motherboard tray. Vertical rubber grommets strategically break up and hide bulky wires, contributing to a clean aesthetic. The Loopin System on the H-series fans further streamlines this, minimizing cable clutter and conserving motherboard headers. The case’s support for E-ATX motherboards up to 277mm wide is generous, and HAVN has ensured ample clearance around the cable routing paths to accommodate these larger boards without compromising organization. For large GPUs, the included highly adjustable anti-sag bracket offers robust support, regardless of mounting orientation.
The CFM Formula for Optimal Airflow
To achieve slight positive pressure, your total Intake CFM must be slightly greater than your total Exhaust CFM. For the HAVN BF 360 Flow, the pre-installed configuration (2x H18 Intake @ 164.63 CFM each) yields a total intake of 329.26 CFM. The single H14 exhaust fan provides 85.18 CFM. This creates a strong positive pressure differential (244.08 CFM) by default. Ensure any additional exhaust fans (including top-mounted AIO radiator fans) you add do not exceed the remaining intake capacity to maintain a clean internal environment and maximize dust mitigation.
Aesthetic Compromise: The White BF 360 Flow’s Internal Clash
For PC builders envisioning a pristine, all-white aesthetic, the HAVN BF 360 Flow presents a notable disappointment: the white variant ships with predominantly black internal components. While HAVN has gone to considerable lengths with scientific engineering and premium materials, this seemingly ‘lazy’ design choice results in a sharp visual clash. The black motherboard tray, cable grommets, and other internal elements stand out starkly against the white exterior, especially when viewed through the tempered glass side panel. This decision feels particularly incongruous given the otherwise meticulous design, and the fact that the included rear H14 fan *is* white suggests that a fully color-matched interior was a missed opportunity. For those investing in a premium, minimalist aesthetic, this internal contrast can be a significant point of frustration, undermining the builder’s vision in a way that feels disrespectful of the premium price point.
Final Verdict & The Future of 180mm Cooling
The HAVN BF 360 Flow is a purpose-built enclosure that currently sets the benchmark for quiet, high-performance air cooling in the mid-tower segment. Its engineering—the 40mm H18 intake fans, the 30mm H14 exhaust fan, both with advanced FDBs, coupled with the precision Air Guide Ramp—delivers a clear, measurable advantage, particularly in GPU thermals, justifying its ‘Best of Show’ recognition. While the pragmatic builder will correctly note that value leaders like the Lancool 217 close the performance gap for significantly less cost, the HAVN’s premium quiet operation and superior thermal ceiling make it the definitive choice for the enthusiast who refuses to compromise on acoustics. However, potential buyers of the white variant should be aware of the internal black components, a minor but noticeable aesthetic compromise. Despite its considerable 14.79 kg weight, the 180mm fan is not a marketing gimmick; it is the logical and necessary next evolution in high-CFM, low-noise cooling technology, and HAVN has executed it masterfully.
