The $2,500 White Hotbox: Building a Compact, High-End Gaming PC with the Ryzen 7 9800X3D and RTX 5070 Ti

The Aesthetic Compromise: Why Compact Builds Always Run Hot

The appeal of a clean, compact, all-white gaming rig is undeniable. But as the LoadSyn community pulse confirms, chasing that small form factor (SFF) aesthetic often means compromising on thermals, noise, and—critically—component safety. Our mission today is to test the limits of this compromise. We are designing a high-end, 1440p/4K capable machine built around the surprisingly budget-friendly Thermaltake S100 TG Micro Chassis. We will leverage the generational leap provided by the new AMD Ryzen 7 9800X3D and the raw rasterization power of the NVIDIA RTX 5070 Ti. The core engineering challenge is clear: can we house these high-TDP flagship components in a restricted Micro-ATX footprint without suffering catastrophic heat issues or, worse, sacrificing system integrity with an inadequate power supply?

Key Takeaways

The Ryzen 7 9800X3D is the performance anchor, providing generational leaps in gaming (up to 20% vs. competition) and remains compatible with existing AM5 motherboards (BIOS update required).
The Thermaltake S100 TG case is aesthetically pleasing but imposes strict thermal constraints (165mm CPU cooler height limit, 330mm GPU length limit).
The RTX 5070 Ti offers excellent 4K rasterization performance but is rarely available at the claimed $750 MSRP, pushing the true build cost higher.
CRITICAL WARNING: Do not cheap out on the PSU in SFF builds. The risk of component failure is too high.

Part I: The Engine Room – CPU and GPU Selection

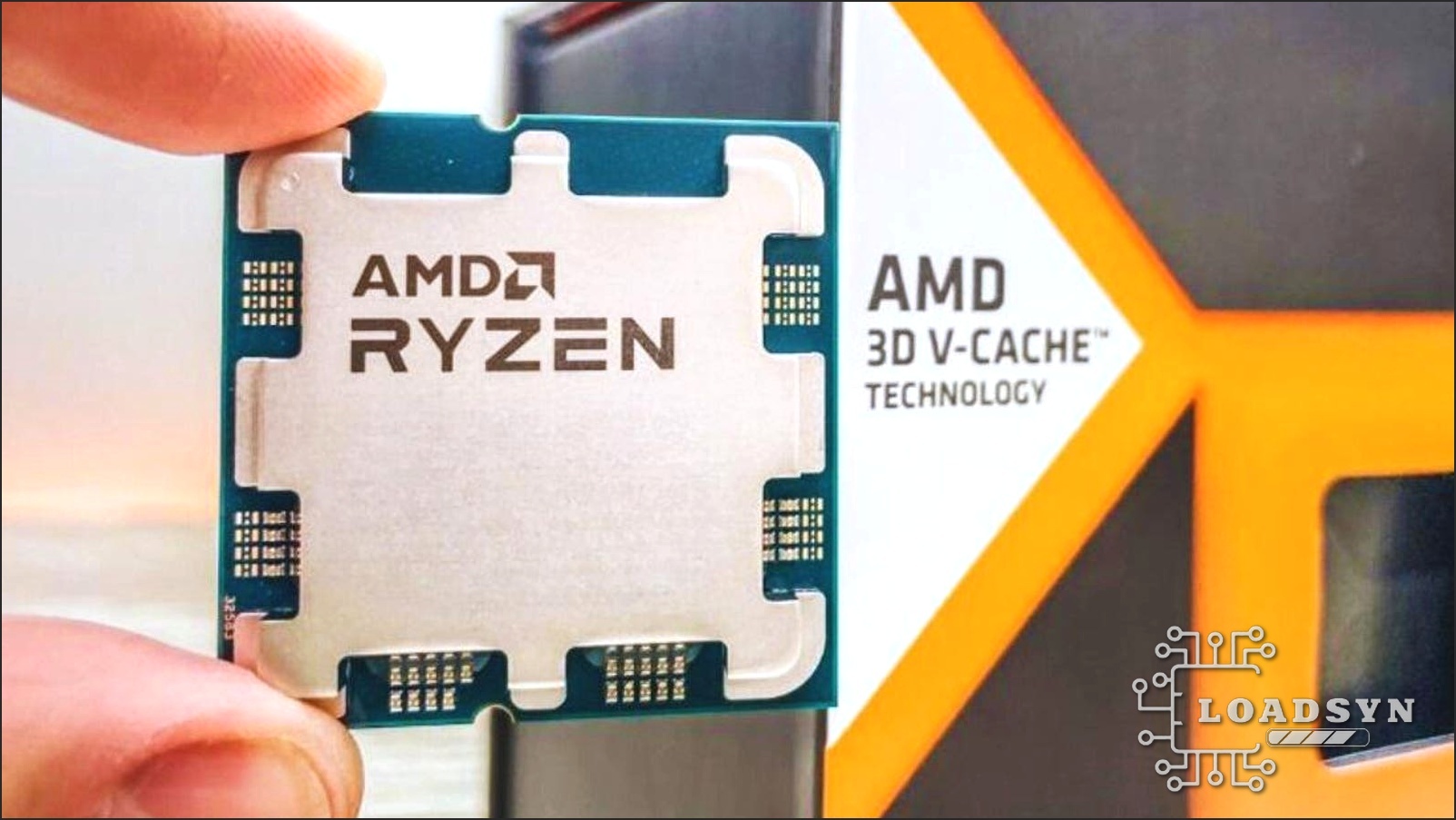

Flagship Gaming Power: Ryzen 7 9800X3D vs. The Field

Criteria	Ryzen 7 9800X3D	Ryzen 7 7800X3D	Intel Core Ultra 9 285K
Architecture/Cache	Zen 5 / 2nd Gen 3D V-Cache (104MB)	Zen 4 / 1st Gen 3D V-Cache (104MB)	Arrow Lake-S (Hybrid)
Max Boost Frequency	5.2 GHz (Fully Unlocked)	5.0 GHz (Locked)	N/A
Gaming Uplift (vs. 7800X3D)	Avg. 8% / Up to 40% in specific titles	Reference	Up to 20% slower than 9800X3D
TDP / Price (SEP)	120W / $479	120W / ~$470 (Market)	N/A

Selecting the graphics card for a compact 4K-capable machine requires balancing thermal output with raw power. The NVIDIA RTX 5070 Ti is the logical choice, offering a substantial 25% performance lead over its predecessor, the RTX 4070 Ti, particularly when pushing 4K resolution. Equipped with a 16GB VRAM buffer and next-generation DLSS 4 capabilities, this card ensures the system is future-proofed against the most demanding titles of 2025 and beyond. While NVIDIA positioned the card with an attractive $750 MSRP, our market intelligence confirms that AIB partner pricing starts closer to $899 for the high-end, triple-fan white models we require for this build. This significant inflation dramatically shifts the final build cost, reminding builders that superior cooling—necessary for a tight SFF case—always commands a premium.

The Cornerstone Build List: White SFF Edition

LoadSyn Recommended White SFF Build (Estimated Cost: $2,500)

CPU: AMD Ryzen 7 9800X3D: Best gaming performance on the market, Zen 5 architecture.
GPU: NVIDIA RTX 5070 Ti (White AIB Model): High-end 1440p/4K performance, DLSS 4 support.
Case: Thermaltake S100 TG Micro Chassis (White): Compact Micro-ATX aesthetic focus, tempered glass.
Cooler: Cooler Master Hyper 612 APEX (White): High-performance air cooler that fits the 165mm height limit.
Motherboard: ASUS ROG Crosshair X870E Hero (or B650): Robust AM5 platform, required for 9800X3D stability and features.
RAM: 32GB G.SKILL Trident Z5 Neo RGB 6000MT/s CL28 (White): Low latency DDR5 optimized for AMD EXPO.

Part II: Engineering Constraints – Case, Cooling, and Clearance

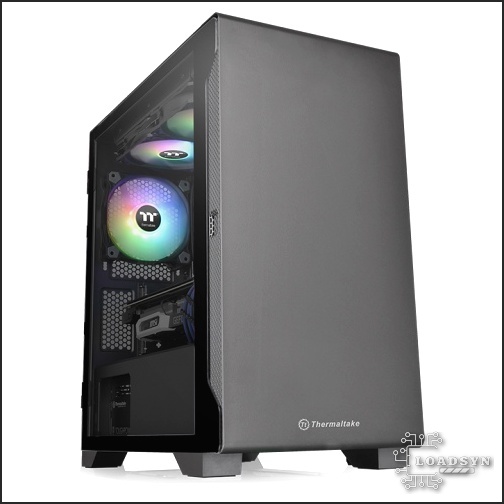

S100 Tempered Glass Micro Chassis with internal annotations — Internal annotations for the Thermaltake S100 TG Micro Chassis:

SFF Air Cooling Compatibility Check

Criteria	Cooler Master Hyper 612 APEX (White)	Thermalright Peerless Assassin 120 SE	Thermaltake S100 TG Limit
Height	159mm	155mm	165mm Max
Heat Pipes	6 SCHP (Superconductive Composite)	6 AGHP Technology	N/A
Fan Noise (Max)	N/A (Uses Mobius 120P PWM)	25.6dB(A)	N/A

CRITICAL SAFETY WARNING: The Budget PSU Trap

The community pulse is clear: ‘If you’re building ITX you don’t cheap out on the PSU. Great way to fry all of your expensive components.’ We wholeheartedly agree. While the S100 TG supports a 160mm Standard PS2 PSU, the combined high TDP of the 9800X3D (120W) and the substantial power draw of the 5070 Ti demand an 80+ Gold or Platinum rated unit with robust overcurrent and over-voltage protection. The condensed airflow of this compact chassis makes thermal stability paramount. Do not compromise power supply quality for cost savings in this high-density build—it is the single riskiest decision a builder can make.

Performance Projection: What the 9800X3D + 5070 Ti Delivers

Projected Performance: 1440p Ultra Gaming (9800X3D / 5070 Ti)

Data Source: Synthesized from AMD GNR-21/25 and RTX 5070 Ti 4K Benchmark Data

The Inspiration: This $600 Tiny Gaming PC is Unreal

Watch the original video that sparked the community discussion around the aesthetic appeal of a compact white build. While the original was a budget concept focused on affordability, our guide demonstrates how to elevate that aesthetic vision into a true high-end, competitive gaming machine using 2025’s most powerful components. The core conflict—balancing size and power—remains the same.

The Cornerstone FAQ: Future-Proofing and Alternatives

Will the Ryzen 7 9800X3D work with my older AM5 motherboard?

Yes. The Ryzen 9000X3D series maintains broad compatibility with all existing Socket AM5 motherboards (B650 and X670 chipsets). This makes the 9800X3D an excellent drop-in upgrade path, provided you update your motherboard to the latest BIOS version prior to installation to ensure stability and feature support.

What if I can’t find the RTX 5070 Ti at MSRP? Are there alternatives?

If AIB pricing pushes the 5070 Ti above $850, we strongly recommend considering the AMD Radeon RX 9070 XT. Benchmarks show it matches the 5070 Ti in native and Ray Tracing performance while launching at a significantly lower official price point of $599 (US). You will sacrifice some advanced DLSS features but gain substantial price-to-performance value.

I’m worried about thermals in the S100 TG. Should I use a different case?

If thermals are your absolute priority, the S100 TG might be too restrictive. Consider the NZXT H3 Flow (a superior Micro-ATX option that supports larger GPUs up to 377mm) or the Havn BF 360 Flow (our top airflow pick). Both offer superior cooling potential compared to the S100 TG’s compact design, though the S100 TG’s cooling can be managed effectively with the Hyper 612 APEX and careful fan placement.

Final Verdict: The White Hotbox

8.9/10

The White Hotbox concept is a resounding success: it delivers world-class gaming performance (thanks to the 9800X3D and 5070 Ti) within a highly desirable, compact aesthetic footprint. However, this is firmly an enthusiast build, not a budget one. The premium component costs, the market reality of inflated GPU pricing, and the strict thermal/PSU requirements mean this build requires careful planning and execution. If you can manage the thermals using the recommended air cooler and commit to a high-quality, high-rated PSU, this build is a stunning, future-proof powerhouse that makes almost no compromises on framerate.
